SMD1206-C系列貼片自恢復保險絲特點：
1、標準化尺寸，體積小，尺寸全，適合自動化生產貼裝。
2、功耗小、最高電壓60V、快速過流保護。
用途：
應用于玩具、LED照明、穿戴數碼、小家電等產品的保護。
產品符合無鹵、RoSH要求。

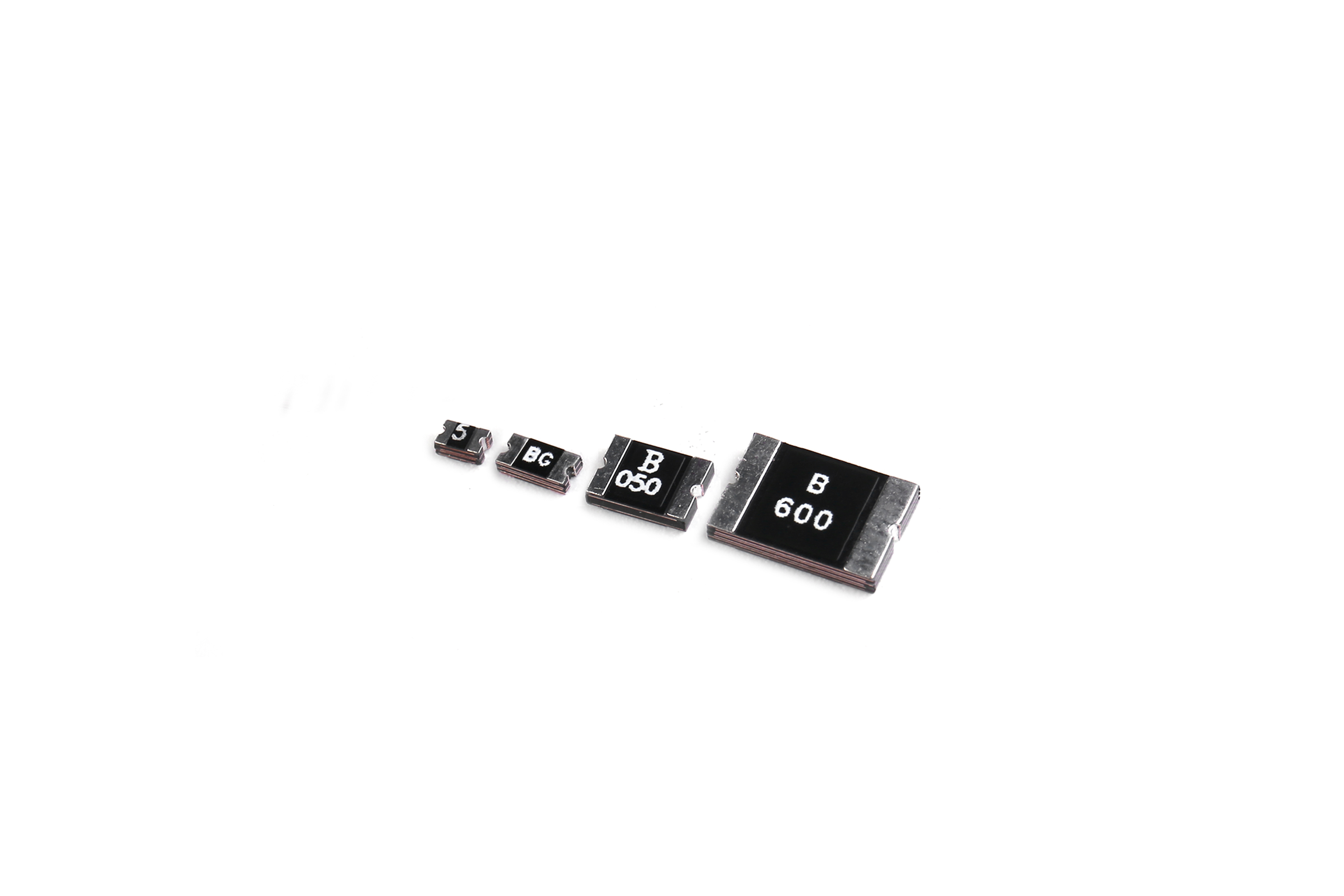

SMD1206-C系列
參數表
|
Part Number |
I(A) |
Vmax |
I max |
Pdtyp |
Ttrip |
Rmin |
R1max |
||
|
25℃ |
-- |
-- |
-- |
25℃ |
25℃ |
||||
|
Hold |
Trip |
(V) |
(A) |
(W) |
Current(A) |
Time(S) |
(Ω) |
(Ω) |
|
|
SMD1206-005C-60V |
0.05 |
0.15 |
60 |
40 |
0.4 |
0.25 |
1.50 |
3.60 |
50.0 |
|
SMD1206-010C-60V |
0.10 |
0.25 |
60 |
40 |
0.4 |
0.50 |
1.00 |
1.60 |
15.0 |
|
SMD1206-012C-60V |
0.12 |
0.29 |
60 |
40 |
0.4 |
0.50 |
1.00 |
1.60 |
13.0 |
|
SMD1206-016C-33V |
0.16 |
0.37 |
33 |
40 |
0.4 |
1.00 |
0.30 |
1.00 |
6.00 |
|
SMD1206-020C-30V |
0.20 |
0.46 |
30 |
40 |
0.6 |
8.00 |
0.10 |
0.35 |
2.70 |
|
SMD1206-020C-48V |
0.20 |
0.46 |
48 |
40 |
0.6 |
8.00 |
0.10 |
0.35 |
2.70 |
|
SMD1206-025C-48V |
0.25 |
0.50 |
48 |
40 |
0.6 |
8.00 |
0.10 |
0.35 |
2.50 |
|
SMD1206-035C-16V |
0.35 |
0.75 |
16 |
40 |
0.6 |
8.00 |
0.10 |
0.25 |
1.50 |
|
SMD1206-035C-30V |
0.35 |
0.75 |
30 |
40 |
0.6 |
8.00 |
0.10 |
0.25 |
1.50 |
|
SMD1206-050C-8V |
0.50 |
1.00 |
8 |
100 |
0.6 |
8.00 |
0.10 |
0.15 |
0.70 |
|
SMD1206-050C-16V |
0.50 |
1.00 |
16 |
100 |
0.6 |
8.00 |
0.10 |
0.15 |
0.70 |
|
SMD1206-050C-30V |
0.50 |
1.00 |
30 |
40 |
0.6 |
8.00 |
0.10 |
0.15 |
0.70 |
|
SMD1206-075C-8V |
0.75 |
1.50 |
8 |
100 |
0.6 |
8.00 |
0.20 |
0.09 |
0.50 |
|
SMD1206-075C-16V |
0.75 |
1.50 |
16 |
100 |
0.6 |
8.00 |
0.20 |
0.09 |
0.50 |
|
SMD1206-075C-30V |
0.75 |
1.50 |
30 |
40 |
0.6 |
8.00 |
0.20 |
0.09 |
0.50 |
|
SMD1206-100C-16V |
1.00 |
1.80 |
16 |
100 |
0.6 |
8.00 |
0.30 |
0.05 |
0.30 |
|
SMD1206-100C-24V |
1.00 |
1.80 |
24 |
40 |
0.6 |
8.00 |
0.30 |
0.05 |
0.30 |
|
SMD1206-110C-24V |
1.10 |
2.20 |
24 |
40 |
0.6 |
8.00 |
0.30 |
0.04 |
0.27 |
|
SMD1206-150C-6V |
1.50 |
3.00 |
6 |
100 |
0.8 |
8.00 |
0.30 |
0.025 |
0.130 |
|
SMD1206-150C-13.2V |
1.50 |
3.00 |
13.2 |
40 |
0.8 |
8.00 |
0.30 |
0.025 |
0.130 |
|
SMD1206-200C-6V |
2.00 |
3.50 |
6 |
100 |
0.8 |
8.00 |
1.50 |
0.015 |
0.080 |
|
SMD1206-200C-12V |
2.00 |
3.50 |
12 |
100 |
0.8 |
8.00 |
1.50 |
0.015 |
0.080 |
|
SMD1206-200C-16V |
2.00 |
3.50 |
16 |
40 |
0.8 |
8.00 |
1.50 |
0.015 |
0.080 |
|
SMD1206-260C-6V |
2.60 |
5.20 |
6 |
100 |
0.8 |
8.00 |
2.00 |
0.010 |
0.060 |
|
SMD1206-300C-6V |
3.00 |
6.00 |
6 |
100 |
1.0 |
8.00 |
4.00 |
0.010 |
0.050 |
|
SMD1206-350C-6V |
3.50 |
7.00 |
6 |
100 |
1.2 |
10.0 |
5.00 |
0.005 |
0.040 |
